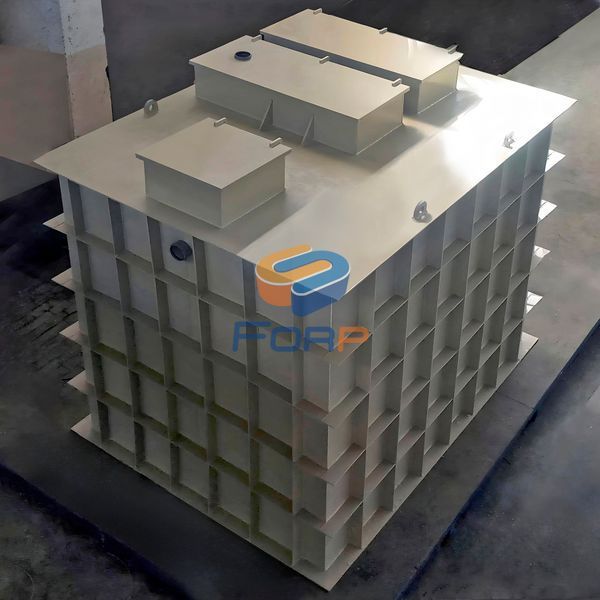

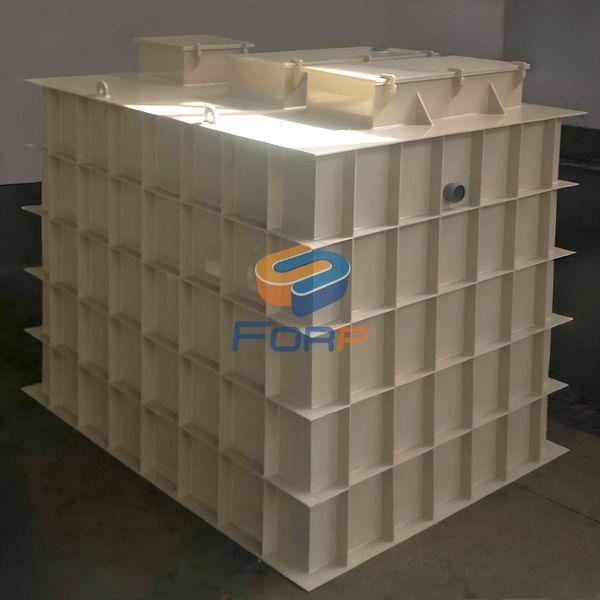

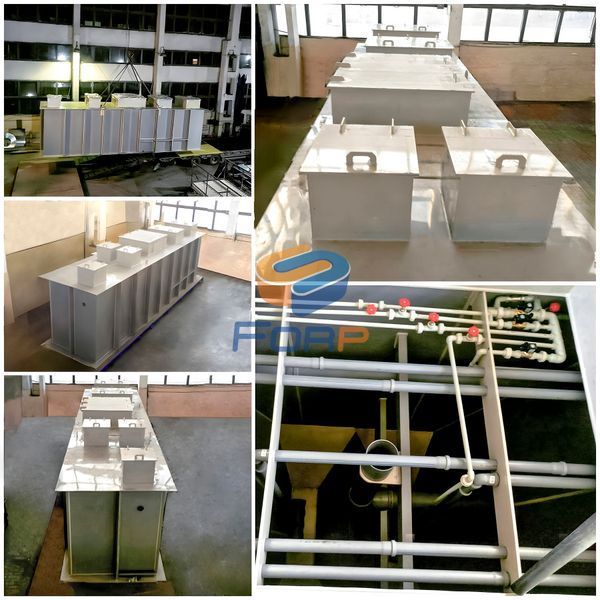

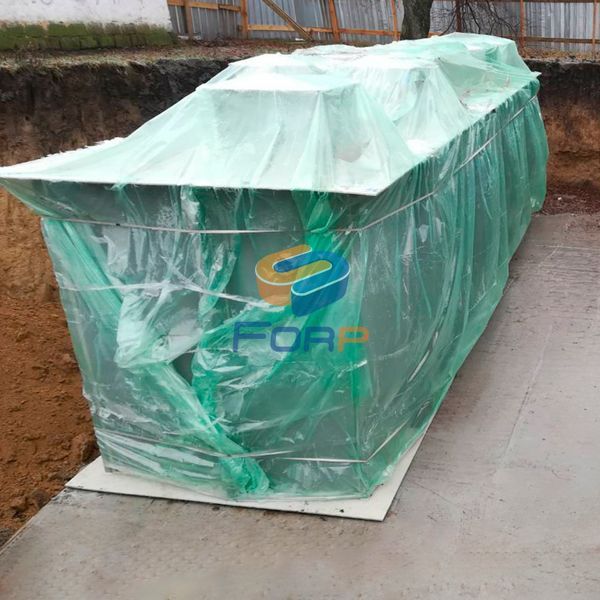

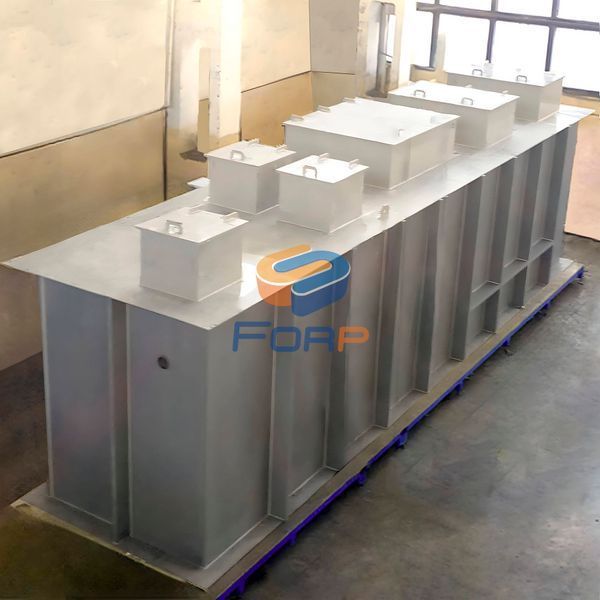

Biological wastewater treatment plant bCleaner PRO

SKU bCleaner PRO 25

Под заказ

Series	D30E	D30С	D35С	D35E	D40E	D40С	D60E	D60С	D90E	D90С	D120E	D120С
Number of people	tо 30		tо 35		tо 40		tо 60		tо 90		tо 120
Productivity, m3/day	tо 4		tо 5		tо 6		tо 10		tо 15		tо 20
Length, mm	2800	2600	3000	2800	3200	3000	5800	5600	7000	6800	8600	8400
Width, mm	2160	1960	2160	1960	2160	1960	2160	1960	2160	1960	2160	1960
Height, mm	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000
Pipeline height, mm	1800	1800	1800	1800	1800	1800	1800	1800	1800	1800	1800	1800
Pipeline outlet height, mm	1650	1650	1650	1650	1650	1650	1650	1650	1650	1650	1650	1650
Power supply	220 V, 50 Hz
Compressor power, W	tо 0,3	tо 0,3	tо 0,5	tо 0,5	tо 0,5	tо 0,5	tо 0,7	tо 0,7	tо 0,7	tо 0,7	tо 0,9	tо 0,9
Type	self-supporting	into the caisson	self-supporting	into the caisson	self-supporting	to the caisson	self-supporting	into the caisson	self-supporting	into the caisson	self-supporting	into the caisson
continuation of the table
Series	D150E	D150С	D180E	D180С	D210E	D210С	D240E	D240С	D270E	D270С	D300E	D300С
TECHNICAL CHARACTERISTICS
Number of people	tо 150		tо 180		tо 210		tо 240		tо 270		tо 300
Productivity, m3/day	tо 25		tо 30		tо 35		tо 40		tо 45		tо 50
Length, mm	9300	9200	10600	10400	12000	11800	13300	13100	11200	11000	12300	12100
Width, mm	2360	2160	2360	2160	2360	2160	2360	2160	2360	2160	2360	2160
Height, mm	2000	2000	2000	2000	2000	2000	2000	2000	2600	2600	2600	2600
Pipeline height, mm	1800	1800	1800	1800	1800	1800	1800	1800	2400	2400	2400	2400
Pipeline outlet height, mm	1650	1650	1650	1650	1650	1650	1650	1650	2250	2250	2250	2250
Power supply	220 V, 50 Hz
Compressor power, W	tо 0,9	tо 0,9	tо 1,1	tо 1,1	tо 1,1	tо 1,1	tо 1,1	tо 1,1	tо 1,25	tо 1,25	tо 1,25	tо 1,25
Type	self-supporting	into the caisson	self-supporting	into the caisson	self-supporting	into the caisson	self-supporting	into the caisson	self-supporting	into the caisson	self-supporting	into the caisson

Biological wastewater treatment station bCleaner PRO

The bCleaner PRO station is designed for use in places where it is not possible to connect to a centralized sewage system: in private houses, cottages, summer cottages.The installation is made in the form of a modular block, which makes it possible to minimize preparatory construction works, and the technology developed by our specialists makes it possible to minimize system maintenance

For whom:

Manufacturing enterprises (according to an individual project)
Those who live in country houses, cottages, summer cottages
Sanatoriums, recreation centers

Main advantages:

Biological sewage treatment systems are always fresh air around your house
High quality components and thorough engineering approach
Sophisticated automation - works reliably, without user intervention
The presence of an anaerobic zone makes it possible to work autonomously during emergency power outages

Working principle:
The principle of operation is based on a combination of mechanical and biological cleaning methods. In addition, thanks to the combination of anaerobic and aerobic processes, the degree of wastewater treatment can reach 97-98%.

After the stage of mechanical cleaning, wastewater first enters the anaerobic zone, wher
denitrification reactions take place. After the anaerobic zone, the wastewater enters the aerator,
where small-bubble saturation of the air with oxygen occurs

Many microorganisms that make up the activated sludge, being in the wastewater, absorb pollutants into the cell, where they undergo biochemical transformations under the influence of enzymes, thereby purifying the wastewater.

Rate this item

Price upon request

Model

D30E D30С D35E D35С D40E D40С D60E D60С D90E D90С D120E D120С D150E D150C D180E D180C D210E D210C D240E D240C D270E D270C D300E D300C

Number of people

to 30 to 35 to 40 to 60 to 90 to 120 to 150 to 180 to 210 to 240 to 270 to 300

Производительность м3/day

to 4 to 5 to 6 to 10 to 15 to 20 to 25 to25 to 30 to 35 to 40 to 45 to 50

Request the price

Features

Country of Origin	Ukraine
Degree of purification	98 %
Method of discharging treated water	Самотечный/принудительный
Warranty period	from 24 mo.
Material	polymer
Set of documents	passport, a guarantee, a conclusion of the SES, TU
Mains voltage	220~240 В
Current frequency	50 Гц
Round-the-clock operation	Да
BOD5	15 мг/л
COD	80 мг/л
N-NH4	2 мг/л
Total suspended solids	15 мг/л
